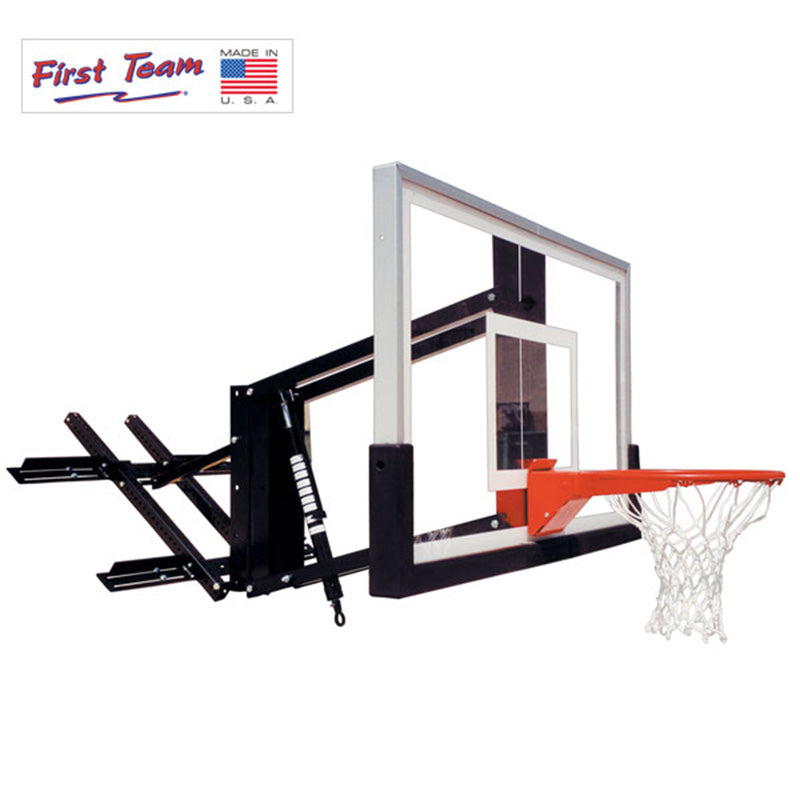

RoofMaster™ III Roof or Wall Mount Basketball Hoop - FT1650

BACKBOARD DETAILS

• 54” Wide x 36” High
• Acrylic backboard
• No dead spots on backboard corners
• Lifetime limited warranty
• 248lbs approximate shipping weight

GOAL SYSTEM DETAILS

• FT1650 RoofMaster Structure
• Versatile for any roof pitch or 90 degree wall installation
• Rim height adjustable from 6’ to 10’, depending on the width of offset

• Built-in height adjustment system from ground level, no ladder needed
• Backboard braces for superior backboard rigidity
• Black powder coat finish
• Heavy-duty direct mount flex rim eliminates backboard stress

• Made in the USA

• Limited Lifetime Warranty

ROOF/WALL-MOUNT STRUCTURE

All welded steel construction with two ¼" thick wall/roof struts with elongated slots for ease of attachment (hardware for attachment to wall not provided). Two 1 ¾"x 1 ¾" perforated tubes, I-Rod and 3/16" thick support channel is also provided. These items are designed for a variety of configurable shapes allowing the structure to be mounted to virtually any roof pitch or vertical wall surface. Attachment area required shall be approximately 36"x 40".

EXTENSION ARMS

Adjustable extension arms are constructed of dual 2” x 2” tubing. A height adjustment crank cylinder is mounted within the extension arms and have a minimum 2,000# capacity rating. Two springs mounted in the extension assembly are included to minimize the amount of effort required to adjust the goal height when raising or lowering the unit. Design allows the rim to be mounted directly to the extension arm through the backboard to reduce stress on the backboard.

BACKBOARD

Constructed of 1/2” thick clear acrylic with bright white markings. The framework is constructed from clear anodized aluminum “L” type extrusions.

RIM

Standard rim is a flexible to absorb the stress of player contact. Spring action from a heavy-duty compression wire spring. A steel cover plate encloses entire internal mechanism. All structural components are built of no less than 3/16” steel. Rim is of institutional quality with an official 5/8"diameter high-strength steel ring supported by a 3/16" brace supporting 60% of the ring. Rim is punched to mount either a 3" x 4" or 5" x 5" hole pattern with an orange powder-coated finish.

WARRANTY

Structure, backboard, and standard rim carry a Lifetime Limited Warranty.
